ASTM Tip I Ultra Saf Su Sistemleri – Barnstead™ GenPure™ xCAD Plus

Ürün Bilgisi

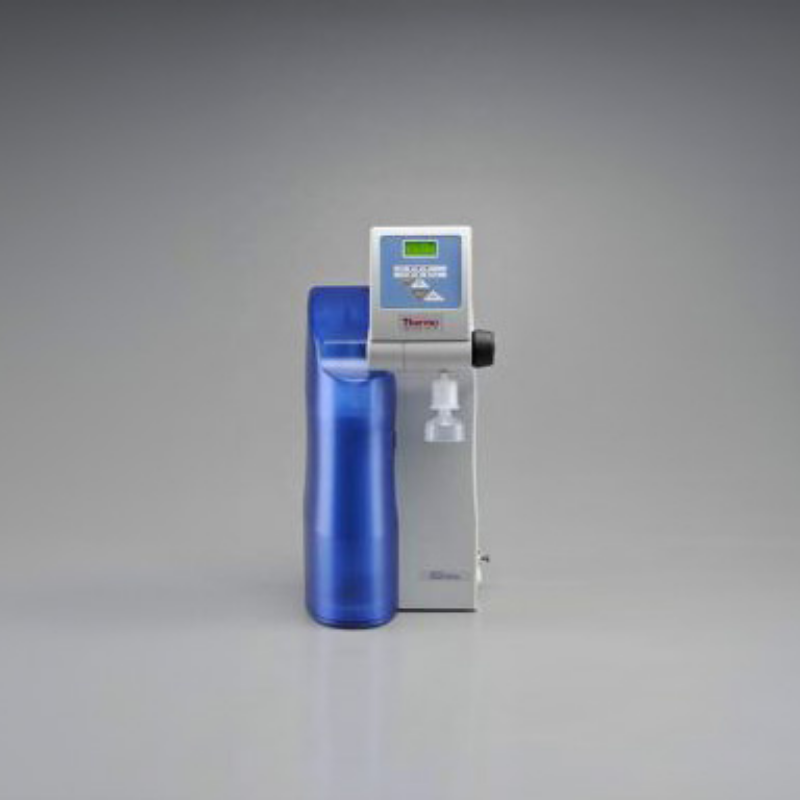

The Thermo Scientific™ Barnstead GenPure xCAD Plus water purification system delivers ultrapure 18.2 megohm-cm water with consistent quality for the most demanding and sensitive applications.

The Thermo Scientific xCAD Plus remote dispenser offers flexibility and full system control in a compact design.

All GenPure systems exceed international standards ASTM Type I, ISO 3696 Grade 1, ASTM D1193 and CLSI-CLRW.

xCAD remote dispenser

xCAD is short for “Extended Control and Dispenser”

The system provides more flexibility for ultrapure water dispensing with an action radius of 32 inches (80cm)

Ergonomic dispensing arm provides precise volume dosing at the press of a button

Turned, height adjusted or extended towards your vessel, you’ll appreciate the flexibility of this dispenser

One-of-a-kind design provides access to all system controls at your fingertips

Simultaneously dispense from up to three dispensers

Each system ships with a single xCAD Plus remote dispenser

For increased flexibility, add one or two more xCAD Plus dispensers

Dispense from all three simultaneously

Integrated feed water monitoring

Additional measuring cell monitors feed water conductivity. If the quality of the feed water drops below the set value, a fault message will immediately be displayed.

Online TOC measurement with UV intensity monitoring

Real-time TOC monitoring for continual measurement of organic substances present in the water

Continuous monitoring of UV intensity removes the risk of false TOC values due to diminished UV intensity

Fault message alerts user when the UV lamp intensity is no longer sufficient for accurate TOC measurements

UV Photo-oxidation 185/254 nm

High performance UV assembly reliably reduces the content of microorganisms and their metabolites

UV oxidation also reduces organic compounds in the water to ultra-low levels

Leak Detection

Internal leaks can be detected and an error displayed

Ready-to-use

Feed water pressure switch, wall bracket, UV lamp, ultrapure cartridge, sterile filter, all included in one part number

Measurement of conductivity/resistivity

Conductivity cells are carefully calibrated prior to each measurement via built-in reference resistance with cell constants at 0.01cm-1

Temperature measurements are made by a platinum chip sensor with ± 0.1°C accuracy

Quick-connect cartridge replacement

Aquastop quick-connect capability enables cartridge replacement within seconds even mid-operation

Exact dosing

Electronic dosing for fully automatic volume control of 0.01-65 L with <2% accuracy

GLP-compliant documentation

Real-time clock and code-protected operating system prevents unauthorized changes to system settings

RS-232 interface with adjustable send-interval for safe data transfer of all measured data, faults, date and time to a PC computer or log printer

Digital microprocessor control automatically monitors and stores faults from the last four weeks

USP-compliant conductivity measurement with temperature compensation can be switched on or off

Teknik Bilgiler

• Flow rate, max. Up to 2L/min.
• Operating pressure min./max. 0.1 to 6 bar
• Conductivity 0.055µS/cm
• Resistance at 25°C 18.2Mwxcm
• Bacterial content (CFU/mL) <1
• Particles >0.2µM/mL <1
• Electrical Requirements 90-240V, 50/60Hz
• Power Consumption 0.1kW
• Feedwater connector 3/4 in. NPT
• Dimensions (D x W x H) 13 x 14.6 x 24 in. (330 x 372 x 615mm)
• Temperature min./max. 2° to 35°C

Ürün Adı: Barnstead™ GenPure™ xCAD Plus

KatalogNo: 50136149,50136152,50136150,50136151,50136153

Marka: Thermo Scientific
