ASTM Tip II Saf Su Sistemleri – Barnstead™ Pacific™ TII

Ürün Bilgisi

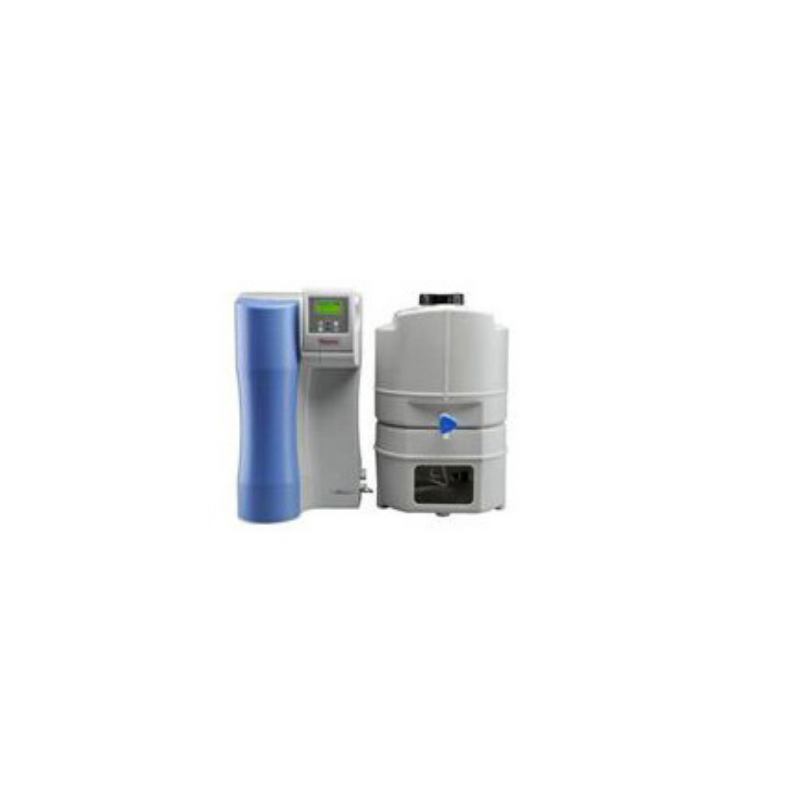

Barnstead™ Pacific™ TII

Thermo Scientific™ Barnstead Pacific TII converts tapwater into 15 – 10MW.cm high purity water.

The Barnstead Pacific TII water purification system converts tap water into high purity water. The ultimate system for the automatic and economical production of Type 2 water, the Pacific TII system supports daily requirements from 20 to 200 liters.

• 50132121        Barnstead Pacific TII 3
• 50132129        Barnstead Pacific TII 3 (UV)
• 50132123        Barnstead Pacific TII 7
• 50132131        Barnstead Pacific TII 7 (UV)
• 50132124        Barnstead Pacific TII 12

Multiple options for Type 2 water

Five system options with permeate flows of 3, 7, 12, 20, or 40L/hr

Future system upgrades accommodate greater capacities to meet growing water demands

Space-saving design permits benchtop installation or wall mounting with integrated mounting bracket

Operational reliability

Microprocessor controlled for automatic operation with continuous monitoring of all critical parameters

Automatic return to “operating” mode ensures recirculation during standstill periods

Optional UV lamp prevents biological contamination

Easy-to-operate

Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing

Status of current operating mode clearly indicating “production”, “stand-by”, “cleaning” modes

Reservoir fill-level shown as %

System parameters are code-protected to prevent accidental changes to set points

Water is dispensed directly from storage tank

GLP-Compliant documentation

Optional printer connects to RS-232 port for data recording and traceability

Cell constant of 0.01cm-1 ensures precise conductivity measurements

Temperature compensation for the conductivity measurement has an accuracy of ±0.1°C (in conformity with USP 645)

Optional Hand Dispenser

Gain increased flexibility by adding a hand dispenser with 3 meter cord which connects to tank. Use only with a tank equipped with a pressure pump (06.5032, 06.5062, 06.5082).  Ships with a 0.2 micron final filter. (Part #50138221)

Teknik Bilgiler

• Conductivity 0.067 to 0.1µS/cm
• Resistance at 25°C 15 to 10MWxcm
• TOC <30ppb
• Bacterial retention 99%
• Silica removal >99%
• Electrical requirements 90-240V/50Hz
• Power consumption 0.08kW
• Feedwater connector 3/4 in. NPT
• Dimensions (D x W x H) 330 x 372 x 613mm
• Weight 25kg
• Temperature min./max.
• 2° – 35°C

Ürün Adı: Barnstead™ Pacific™ TII

Katalog No: 50132121,50132129,50132123,50132131,50132124

Marka: Thermo Scientific
